3V 60M 26 - 28LM 6000-6500K PCT 2835 SMD LED CHIP For Indicator Light

2835 3V 60M 26-28LM 6000-6500K PCT SMD LED CHIP FOR INDICATOR LIGHT

3V 60MA 0.2W 2835 26-28LM 3000K 4000K 6500K PCT SMD LED FOR INDICATOR LIGHT
At present, CNC machine tools produced at home and abroad use many indicators. The corresponding working state of the machine tool is judged by the status of the indicator. The correct indication of the indicator plays an inestimable role in the normal operation of the machine tool, especially the machine tool operation panel. The current machine tool operation panel is composed of many buttons, and each button has an indicator light to indicate its status. The quality of the indicator light directly affects whether the working state of the machine tool can be judged by its indication, so judging the quality of the indicator light has become an important part of machine tool maintenance

1. Product Freatures

.Efficacy of 140 lm/W typical for 3000K, 80CRI

.Adopt good quality chip and frame ,antistatic good stability Ultra low attenuation

.High brightness ,low attenuation high color rendering

. Minimum 70, 80, 90 and 95 CRI options

.Strong welding and good stability undead light

.Product series and company logo on the front

. CE ROHS LM80 Certification

.Viewing angle:120 deg
.RoHS compliant lead-free soldering compatible
2. Package Structure

Unit: mm Tolerance: +/-0.1mm
3. Product Specification

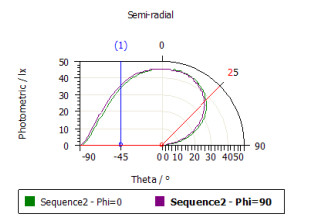

4. Typical Electro-Optical characteristics curves

• 5.LED Reliability Test List

• Test Item	Test Conditions	Standard	Qty(Pcs)
  Life Test	25℃,1000Hrs@60mA	/	20
  High Temperature	85℃,1000Hrs@60mA	/	20
  Low Temperature	-40℃,1000Hrs@60mA	/	20
  High Humidity Heat	85℃,85%RH, 1000Hrs@60mA	/	20
  Low Temperature Storage	-40℃,1000Hrs	JEITA ED-4701 200 202	20
  High Temperature Storage	100℃,1000Hrs	JEITA ED-4701 200 201	20
  Temperature Cycle	(-40'C 30mins --25'C(5mins)--100'C(30mins) ,Temp changing rate:3+/-0.6'C/min)	JEITA ED-4701 100 105	20
  Thermal Shock	-40'C(15mins) --100'C(15mins),changing time <5mins ,300C	MIL-STD-202G	20
  Pulse Life Test	Tp=1ms,DC=0.1,D=Tp/T @ 3×60mA,1000Hrs	/	20
  ESD Test(HBM)	2000V,200V/Step, Forward & Reverse Test both 3times	AEC (Q101-001)	20
  Soldering resistance	260±5℃,10S,3times Pre-treatment 30℃,70%RH	JEITA ED-4701 300 302	20
  Reflow IV Decay	260±5℃,10S,1time Pre-treatment 30℃,70%RH,168Hrs	/	20

6500K PCT 2835 SMD LED CHIP

INDICATOR LIGHT 2835 SMD LED CHIP

6000K PCT 2835 SMD LED CHIP
